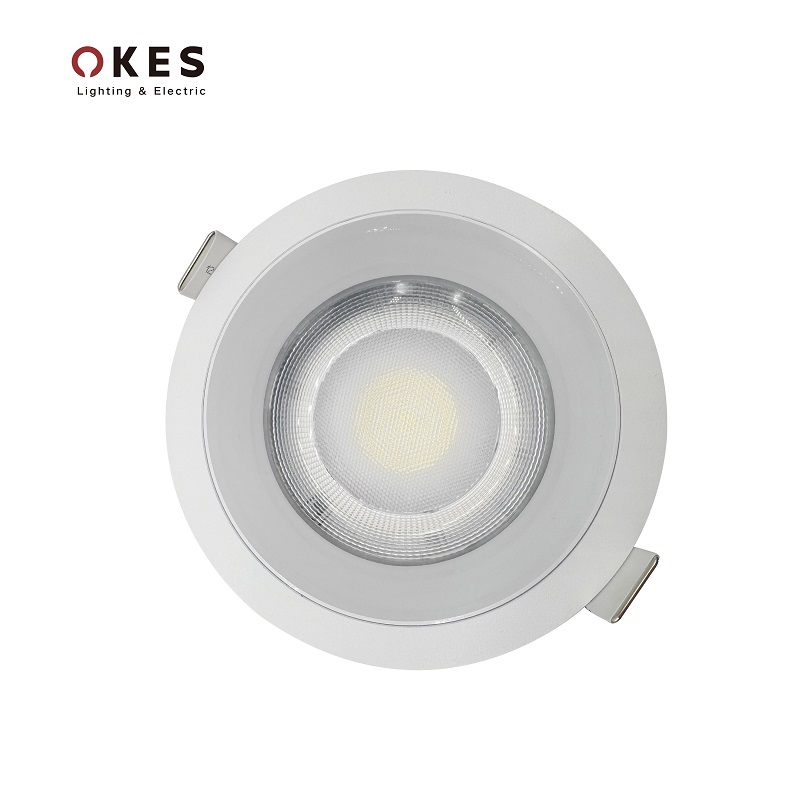

Die-cast aluminum downlights 10W, 15W, 18W, 24W, 30W, 36W

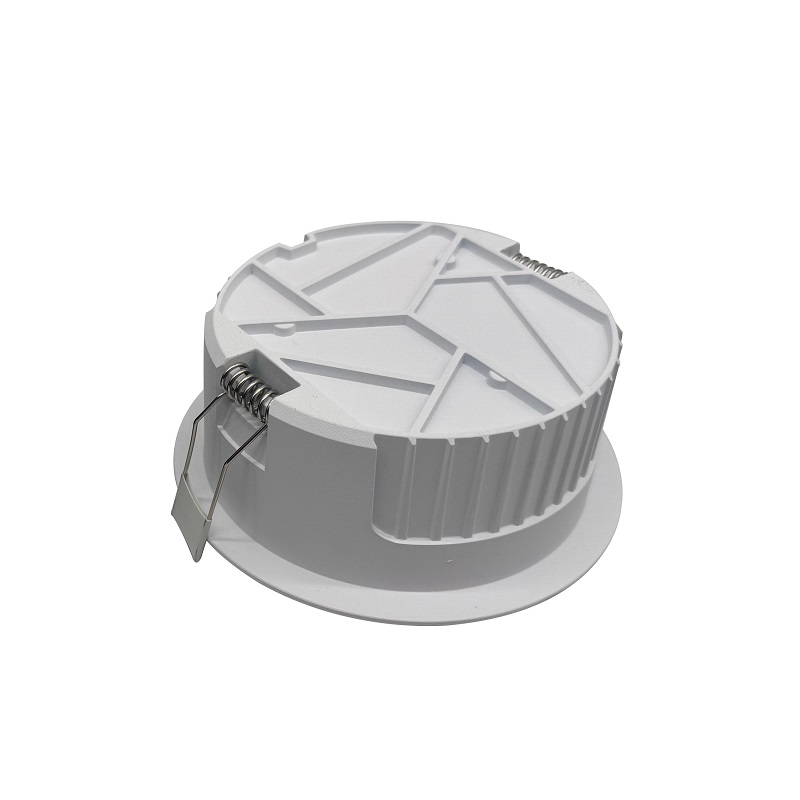

Unique striped design radiator for a simple look.

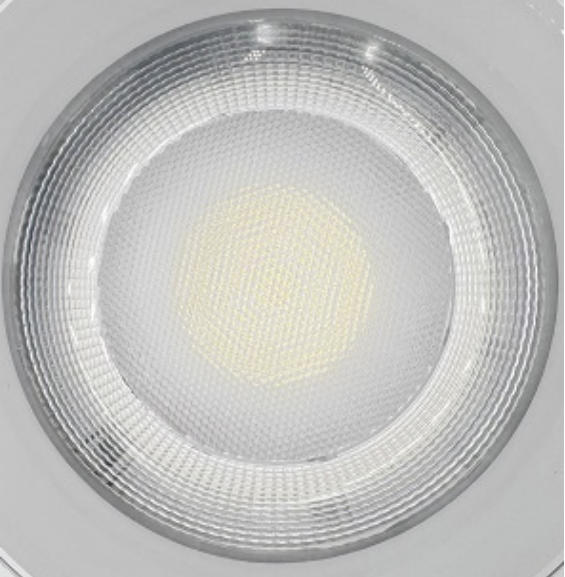

It adopts high-quality lens with good light transmission performance
In addition to the lens model, it can also be made into a PC diffusion surface, which emits soft light.
Application:
Because of its multiple sizes and high light efficiency, this downlight is widely used in shopping mall lighting. Different areas can also choose different sizes and power to meet different brightness requirements.
Parameter list :
|
Power |
Size（mm） |
Cut out |
Voltage |
LED |
CCT |
LED Driver |
Lumen |
|
10W |
Φ82*H45 |
Φ75 |
AC175-265V |
SMD2835 |
3000K/3500K/4000K/ 5000K/6000K |
isolation |
≧100Lm/W |
|
10W |
Φ95*H45 |
Φ75 |
AC175-265V |
SMD2835 |
3000K/3500K/4000K/ 5000K/6000K |
isolation |
≧100Lm/W |
|
15W |
Φ108*H49 |
Φ95 |
AC175-265V |
SMD2835 |
3000K/3500K/4000K/ 5000K/6000K |
isolation |
≧100Lm/W |
|
18W |
Φ138*H54 |
Φ120 |
AC175-265V |
SMD2835 |
3000K/3500K/4000K/ 5000K/6000K |
isolation |
≧100Lm/W |
|
24W |
Φ160*H57 |
Φ140 |
AC175-265V |
SMD2835 |
3000K/3500K/4000K/ 5000K/6000K |
isolation |
≧100Lm/W |
|
30W |
Φ182*H60 |
Φ160 |
AC175-265V |
SMD2835 |
3000K/3500K/4000K/ 5000K/6000K |
isolation |
≧100Lm/W |
|
36W |
Φ225*H62 |
Φ200 |
AC175-265V |
SMD2835 |
3000K/3500K/4000K/ 5000K/6000K |
isolation |
≧100Lm/W |
FAQ:
Q1:What colors are available for selection?
This downlight is available in all black and all white.
Q2:What is the color tolerance?
About less than 4.
