LED frameless slide panel light – 10W 18W 24W 36W

Short Description:

1.Product feature :

·The size of the cut-out can be adjusted freely.

·There are single-color and 3CCT schemes.

·The lamp body is frameless.

·It has a high luminous efficacy of 90-100lm/w.

2.Product description:

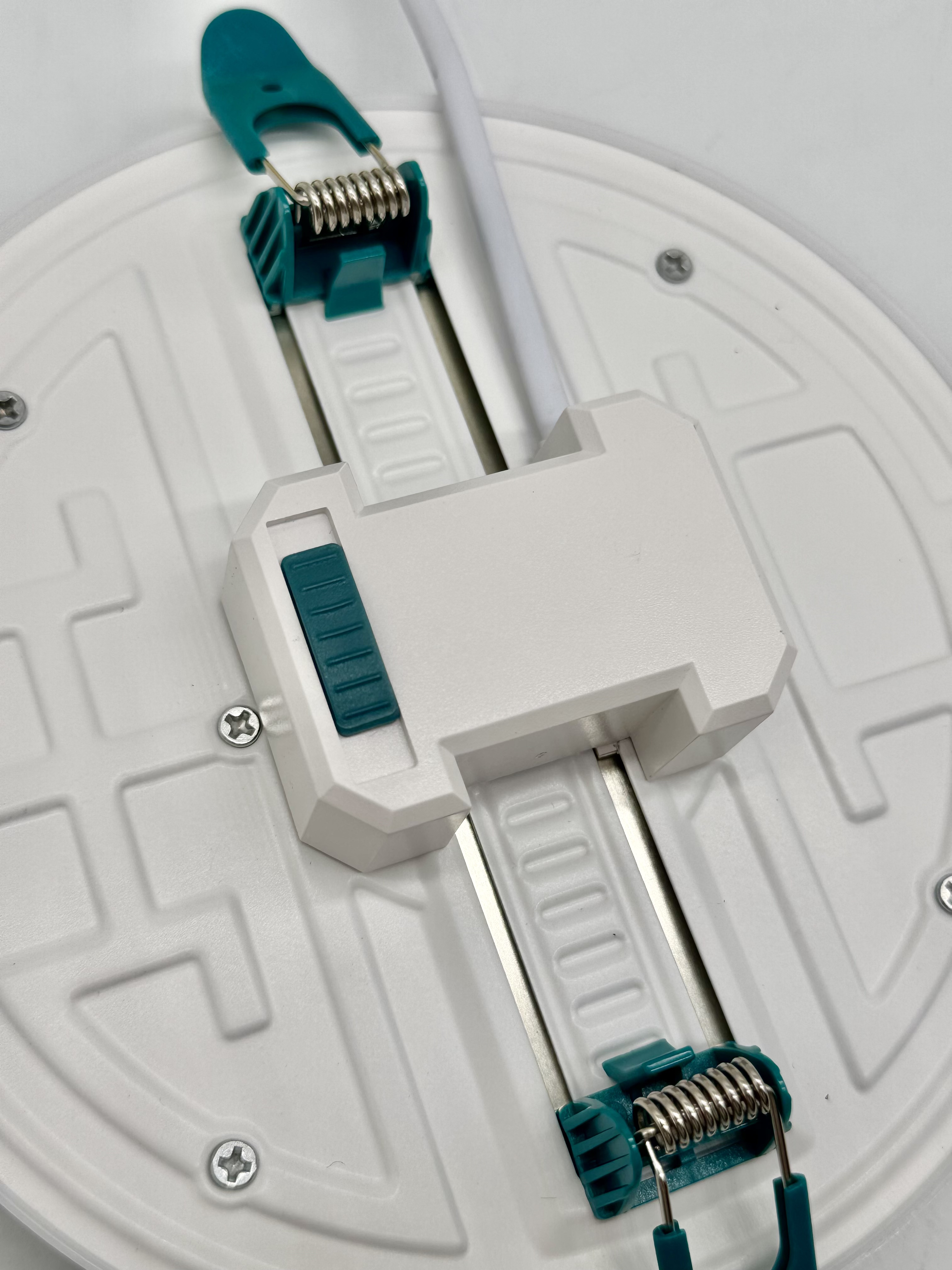

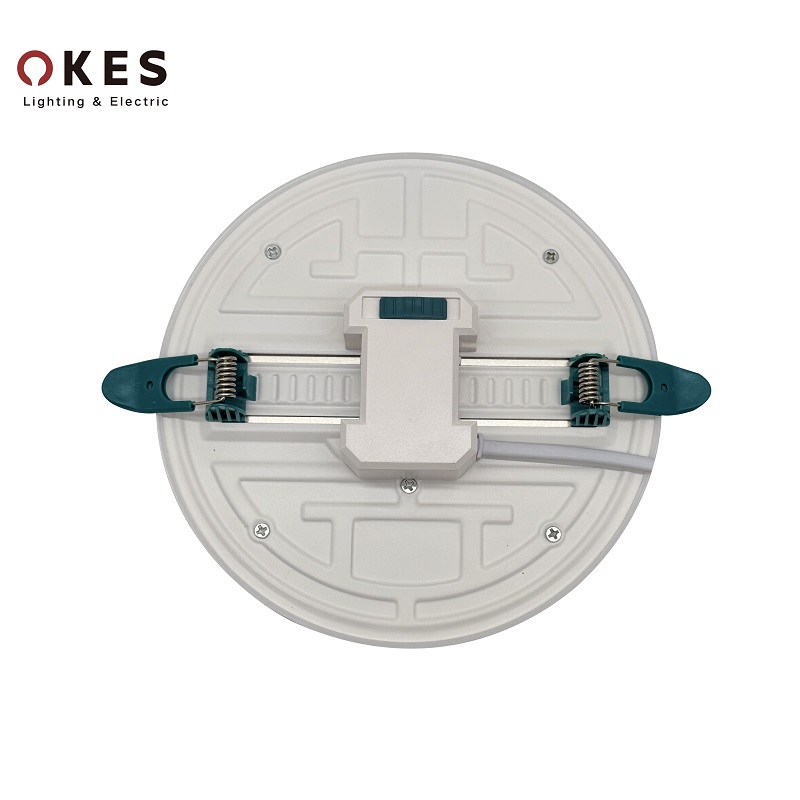

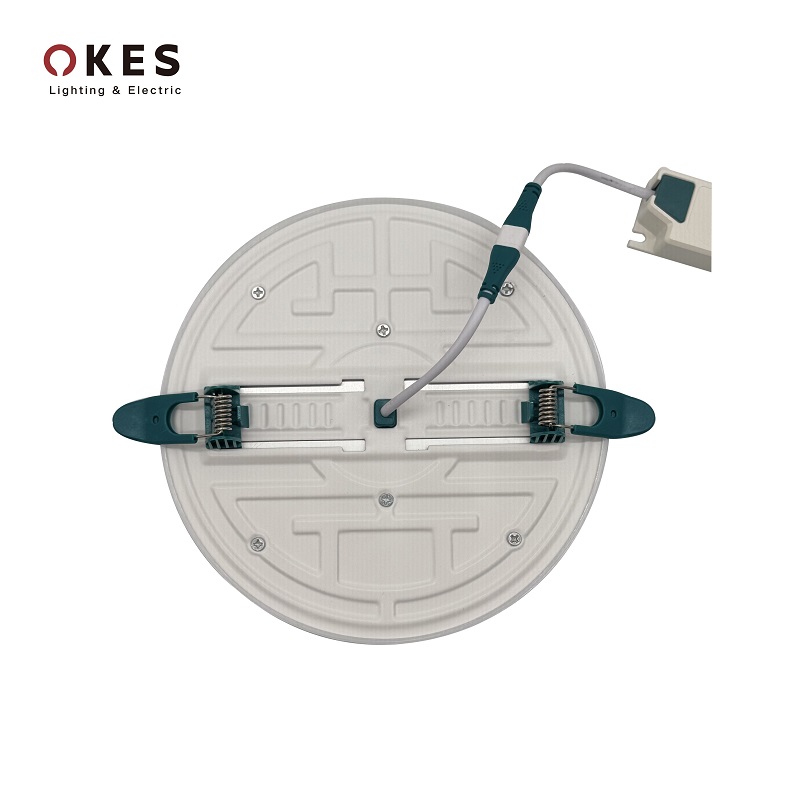

This product of OKES is a new type of ultra-thin series panel light, which cancels the frame design, extends the lampshade directly to the back panel, and adopts sealing technology to prevent the entry of mosquitoes. The lampshade emits light as a whole, and the side can also effectively transmit light. The highlight is uniform, perfectly covering the traces of installation, simple and elegant. The overall ultra-thin design perfectly solves the problem of low ceiling installation. The back adopts a free-moving buckle. According to the size of the hole, the position of the buckle can be adjusted reasonably to break through the limitation of space.

Send email to us

Product Detail

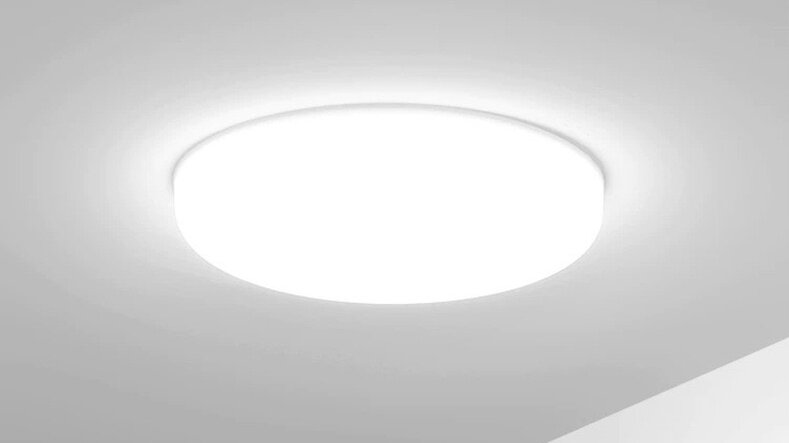

Borderless extra-large luminous surface.

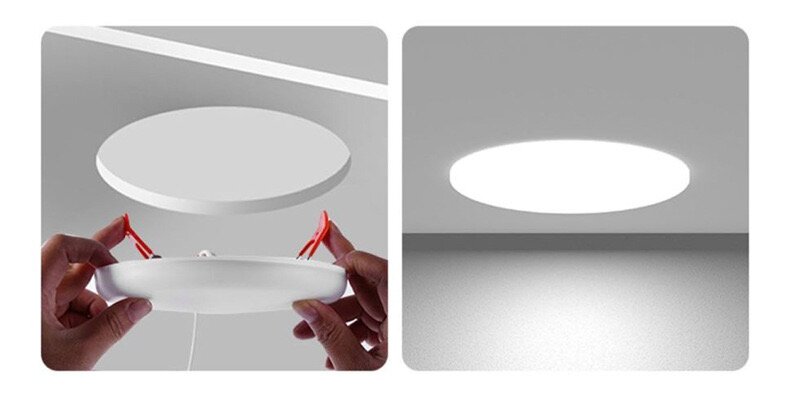

Free-opening design, small holes can also be used to install headlights.

It can be configured with three-color temperature dip codes.

Application:

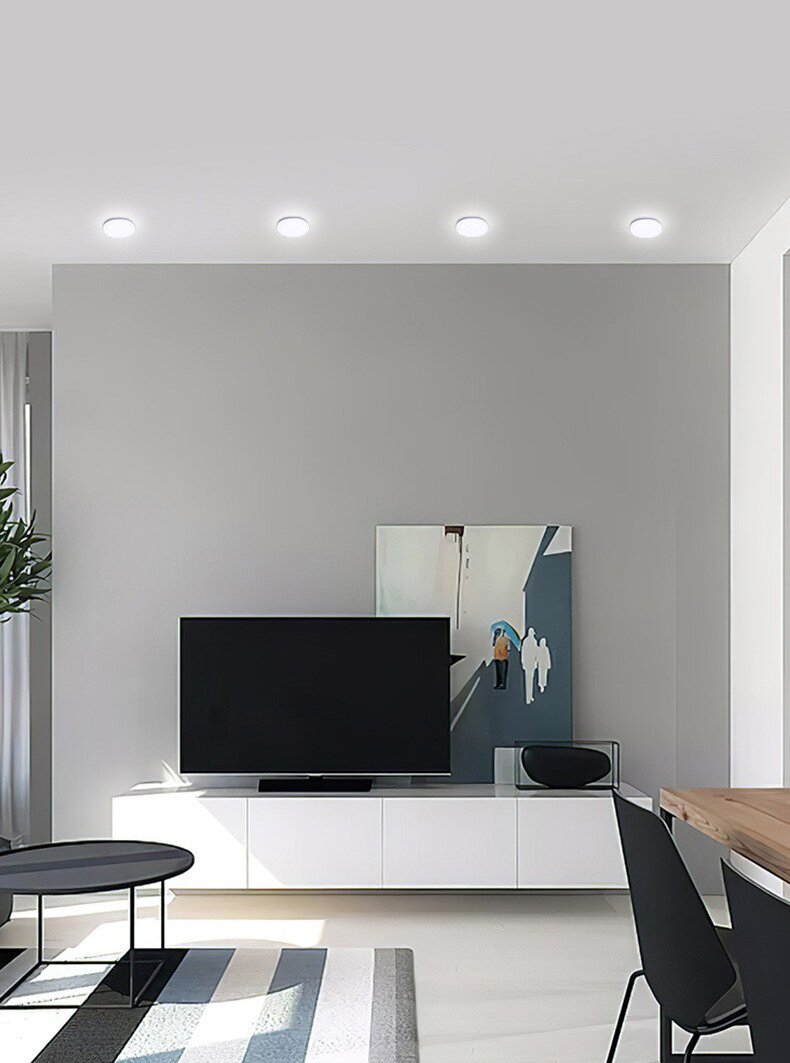

This product can be used in shopping malls, offices, and homes. The buckle can be moved freely according to the size of the opening, making installation more convenient. Installed in the bedroom of the home, such as a room of 20 square meters, this product only needs to install two 24W.

Parameter list :

Power	Size（mm）	Cut out	Voltage	LED	CCT	LED Driver	Lumen
10W	Φ100*H	Φ55-75	AC175-265V	SMD	3000K-6500K	non-isolated	90-100LM/W
18W	Φ120*H	Φ55-110	AC175-265V	SMD	3000K-6500K	non-isolated	90-100LM/W
24W	Φ170*H	Φ55-155	AC175-265V	SMD	3000K-6500K	non-isolated	90-100LM/W
36W	Φ220*H	Φ55-210	AC175-265V	SMD	3000K-6500K	non-isolated	90-100LM/W
