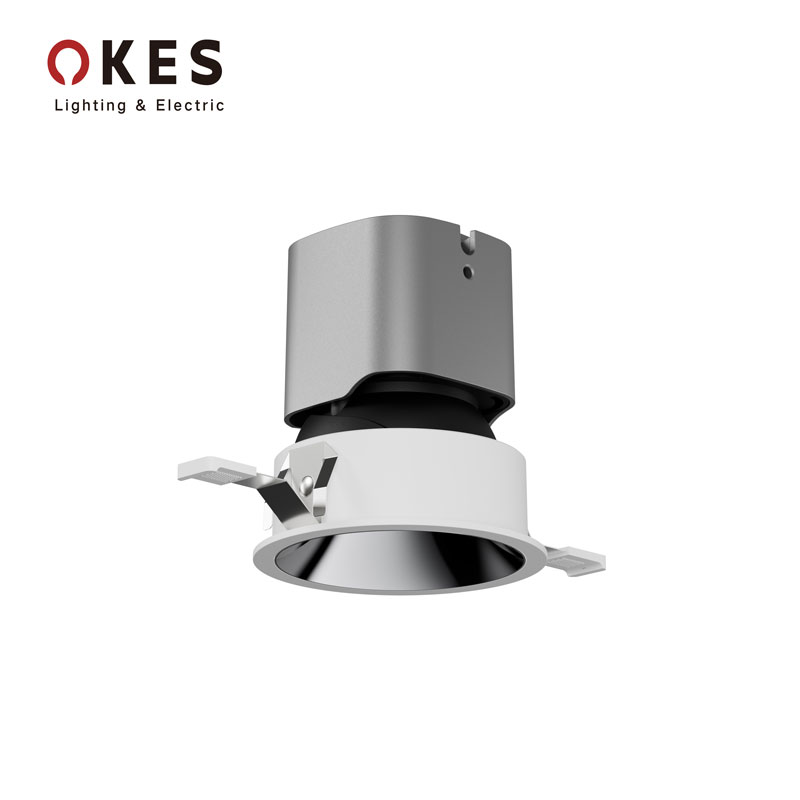

Spotlight cut-out 75mm 95mm- 7S spotlight

Short Description:

1.Product feature :

·One-piece die-cast square radiator with private mold designsquare radiator with a private mold design.

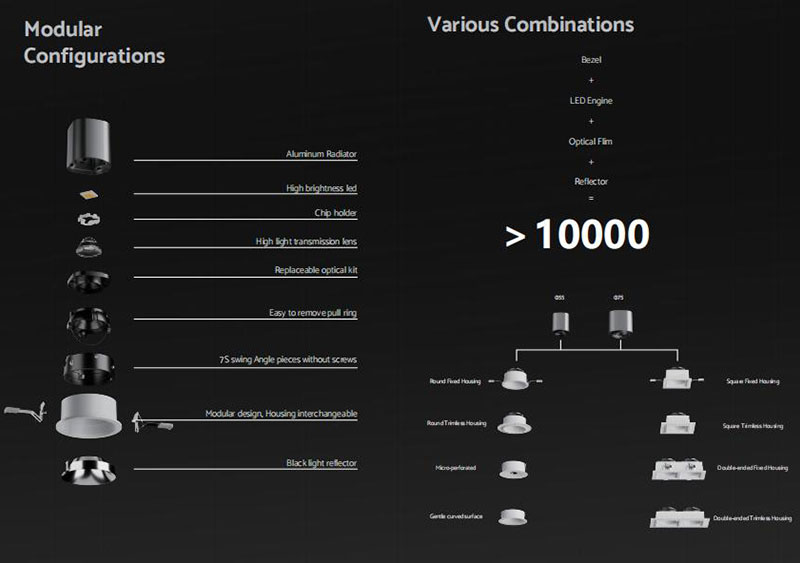

·The radiator can be matched with different face rings， lens and reflectors.

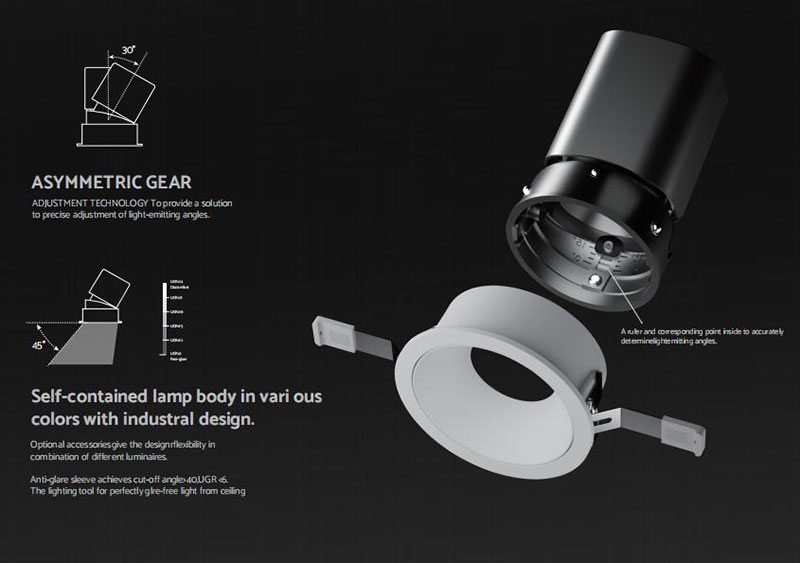

· 0-30° swing angle design.

·Anti-glare.

2.Product description:

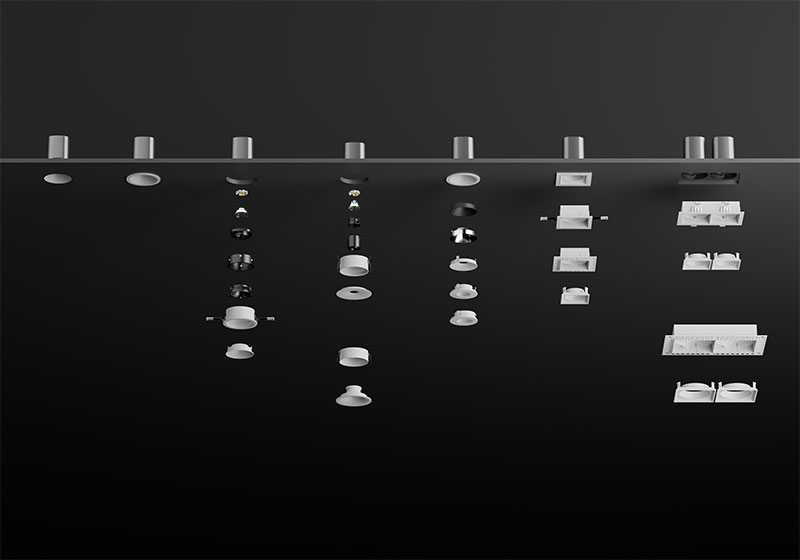

In 2025, OKES launched this private model – 7S spotlight, which adopts an integrated die-cast square radiator and a special silver design. The lamp body supports 0-30° swing angle and 360° horizontal rotation, flexible lighting and precise lighting. The lamp body radiator can be matched with different face rings of the same series, round, square, double-headed square, etc. You can also change the reflector cup of different colors and lenses of different irradiation angles to achieve diversified design and matching styles.

Send email to us

Product Detail

Application:

The 7S spotlight has a diversified matching design, which is very suitable for the lighting of the hotel. In different areas of the hotel, there are different requirements for the lighting angle. The 7S spotlight can be flexibly replaced with a 55° lens in the corridor lighting of the hotel, the ceiling of the guest room can be 36°, and the reading position at the head of the bed can be 24°. If you don't like the round face ring, you can also change the square one, and the embedded one can be realized.

Parameter list :

Power	Size（mm）	Cut out	Voltage	LED	CCT	LED Driver	Lumen
7W	Φ65*H79	Φ55	AC175-265V	COB	3000K-6500K	isolation	60-70LM/W
10W	Φ85*H89	Φ75	AC175-265V	COB	3000K-6500K	isolation	70-80LM/W
12W	Φ85*H89	Φ75	AC175-265V	COB	3000K-6500K	isolation	70-80LM/W
